TL; DR

RStudio has some wonderful features! Here are some tips and tricks for new learneRs to get started with regards to customizing your interface, getting started with R Markdown, and a bit of troubleshooting.

Background

Gif’s were captured in May 2019, likely with RStudio version 1.2.1335-1. Keyboard shortcuts are for Windows users, Mac users may differ. For Windows users, I also recommend changing your default settings to show file extensions.

And if you are not familiar with it, please allow me introduce you to Will Smith’s 1998 hit “Gettin’ Jiggy Wit It.” 🎵Na na na na na na na nana 🎵

Customizing the interface

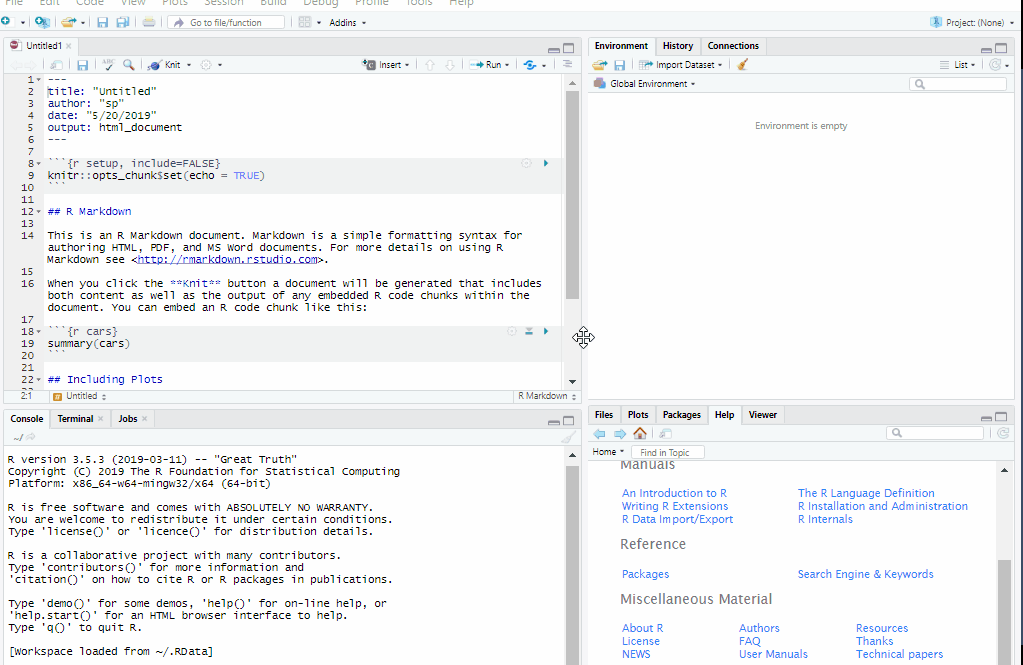

Adjusting panels

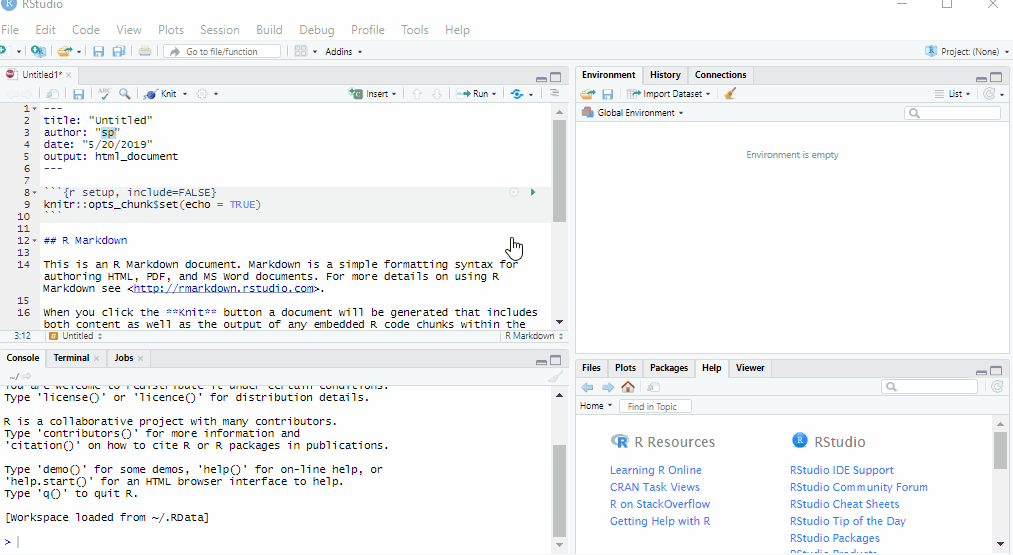

Re-arrange panels

Tools -> Global Options -> Panel Layout

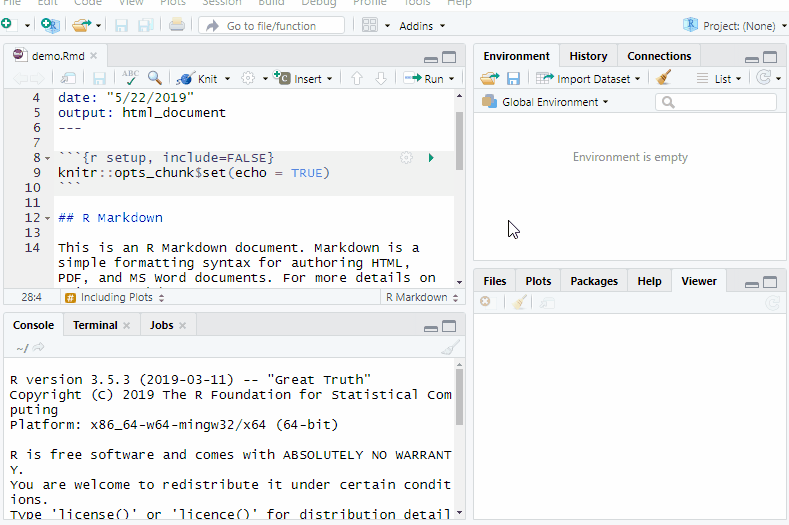

Recover lost panels

Font size/resolution

View -> Zoom in / Zoom out / Actual size

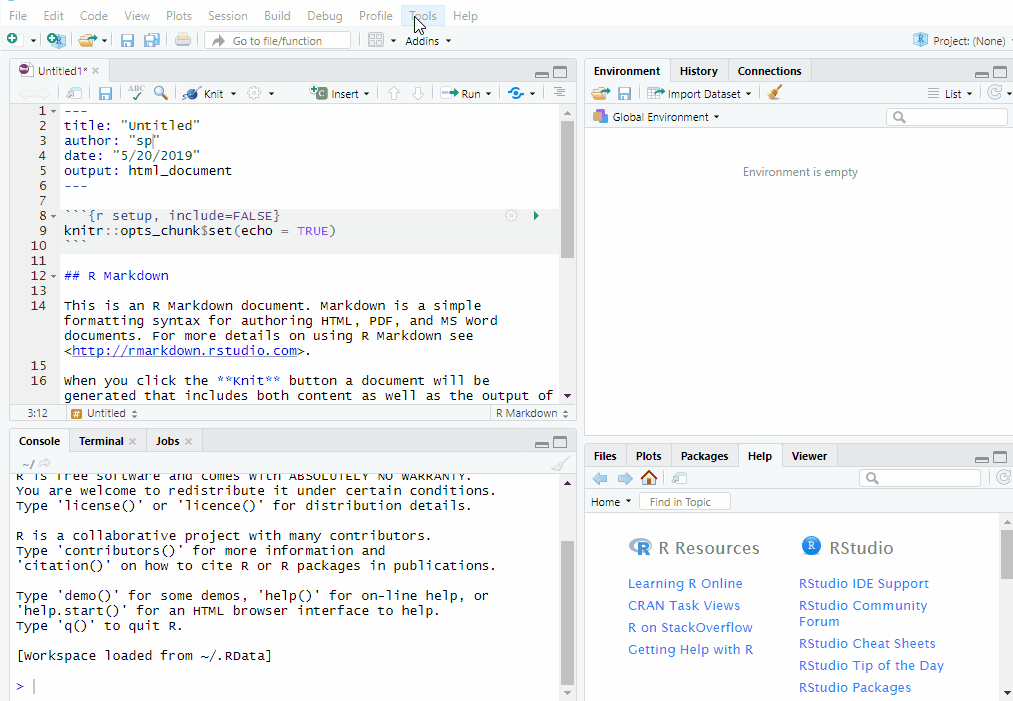

Personalization

Tools -> Global Options -> Appearance

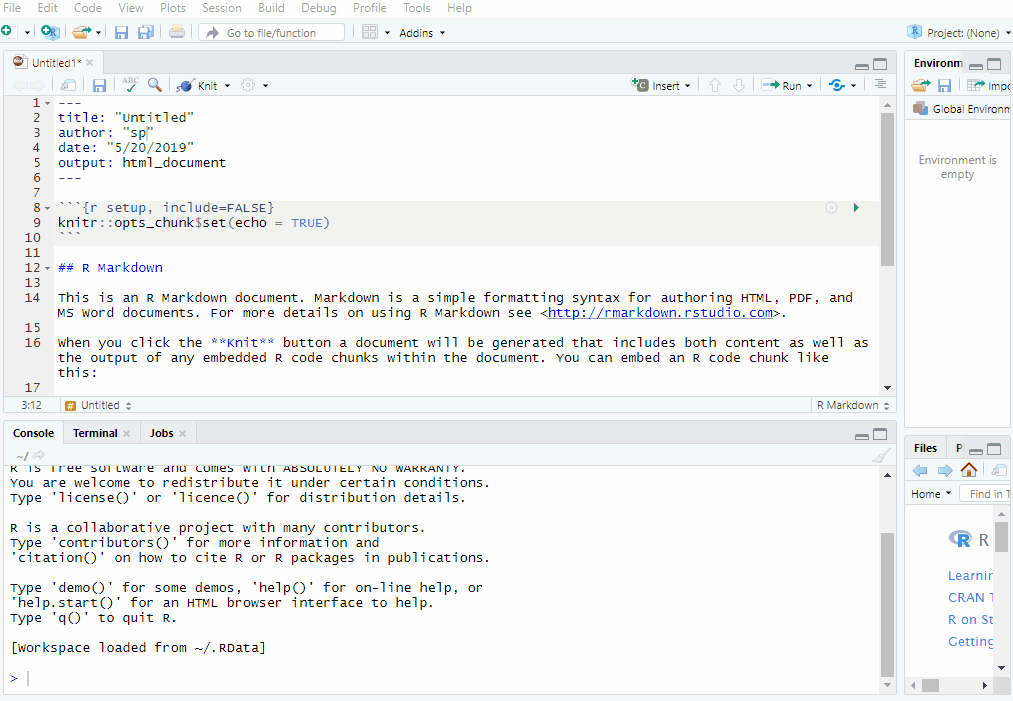

Margin column

Tools -> Global Options -> Code -> Display -> Show margin -> Margin column 80

Consider placing a margin column at 80 characters as a reminder for code formatting. Keeping code within 80 characters can make it easier to read when switching displays or sharing code.

R Markdown

Opening a new R Markdown

File -> New file -> R Markdown    or    -> R Markdown

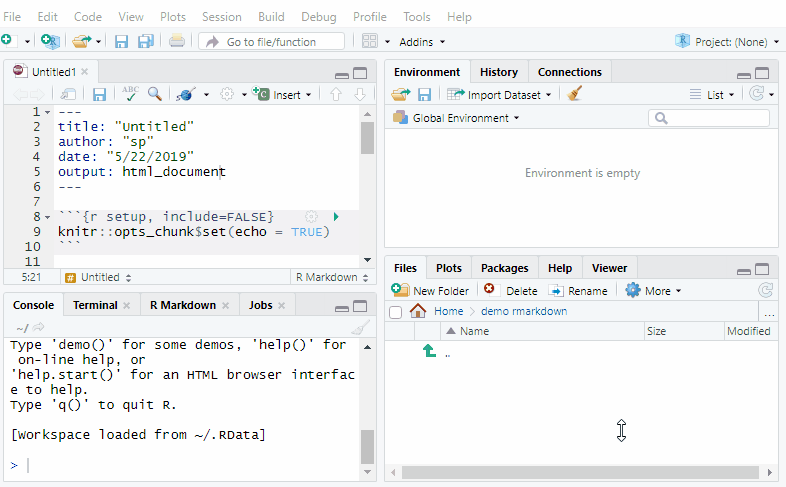

Knitting an R Markdown

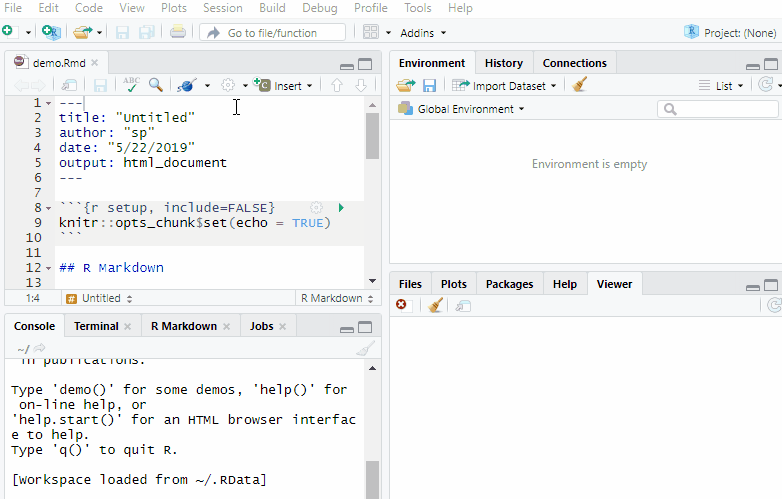

Preview an R Markdown

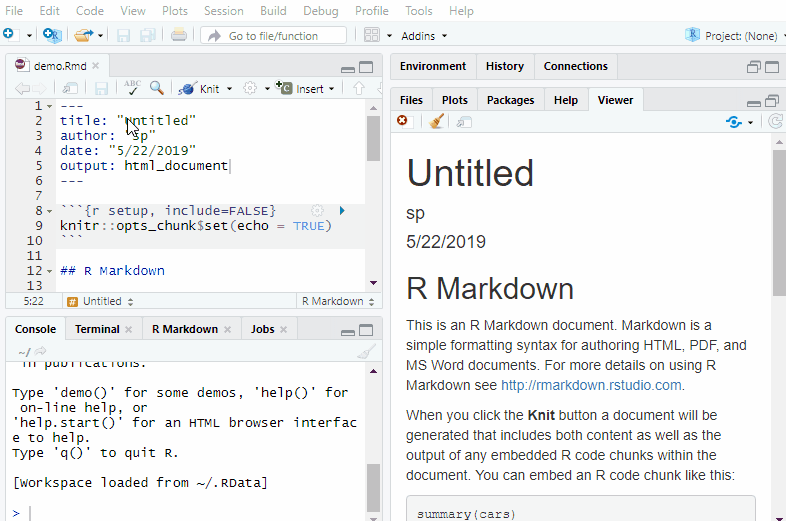

Personalizing R Markdown

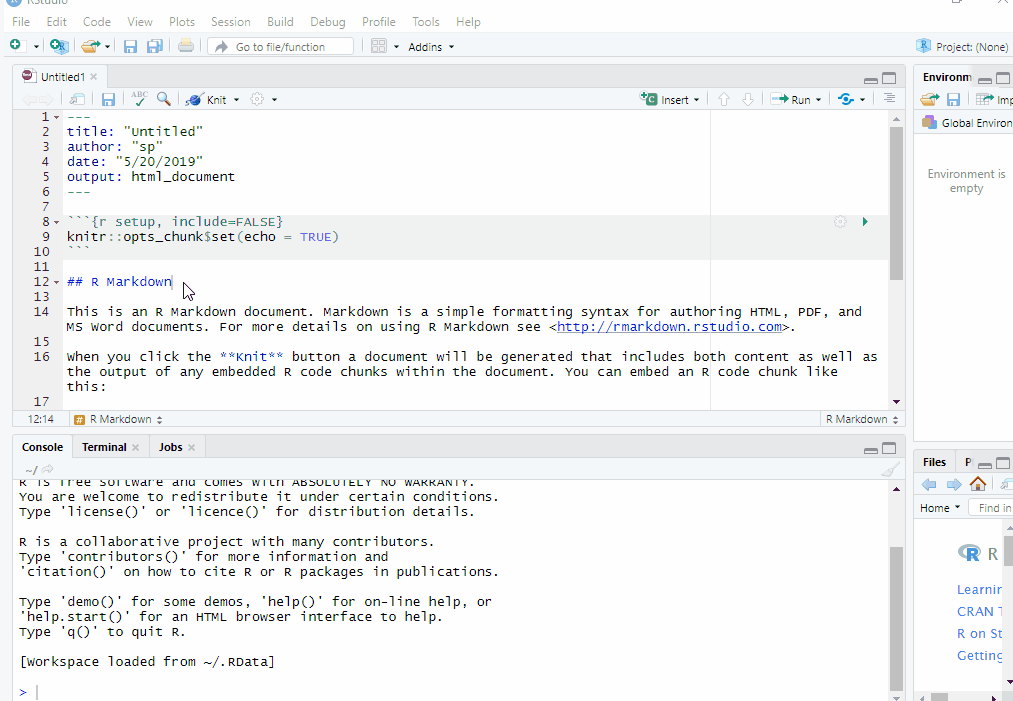

Inserting/splitting code chunks

   or    Ctrl + Alt + I

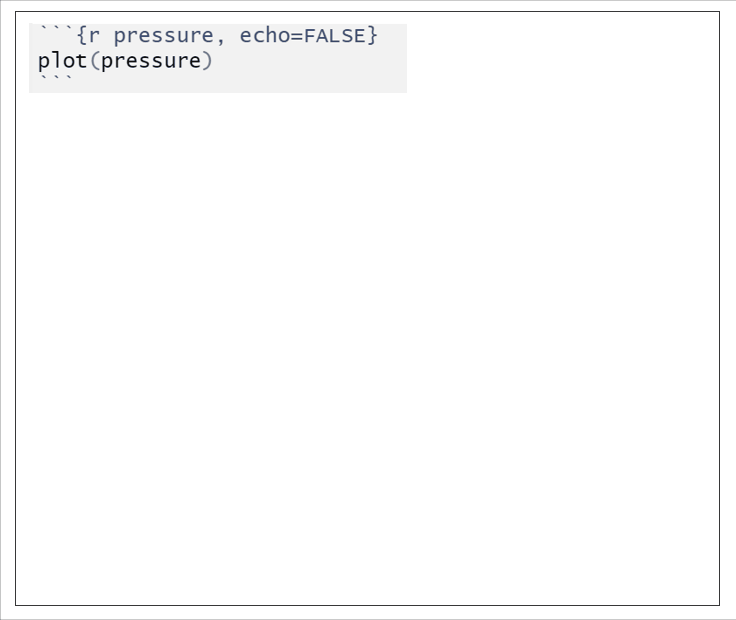

Chunk anatomy

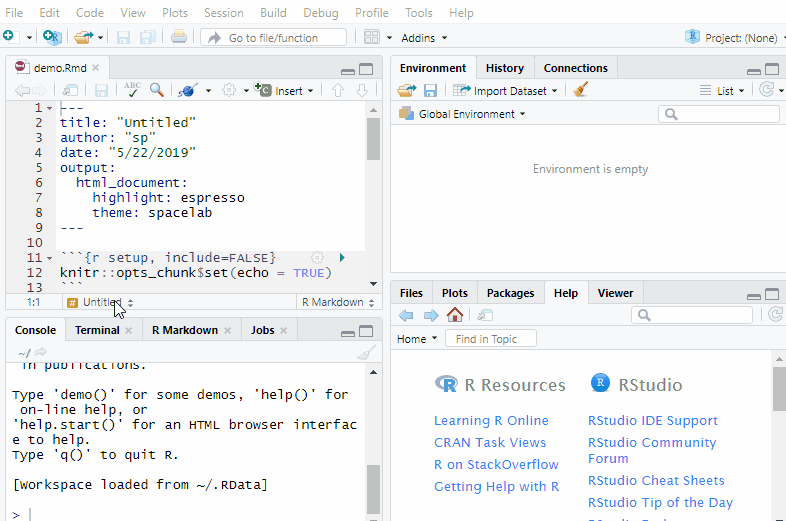

Chunk names

Chunk names allow you to quickly navigate code, automatically name figures, and troubleshoot errors. Chunk names must be unique! If no name is provided, a default numbered chunk name will be assigned.

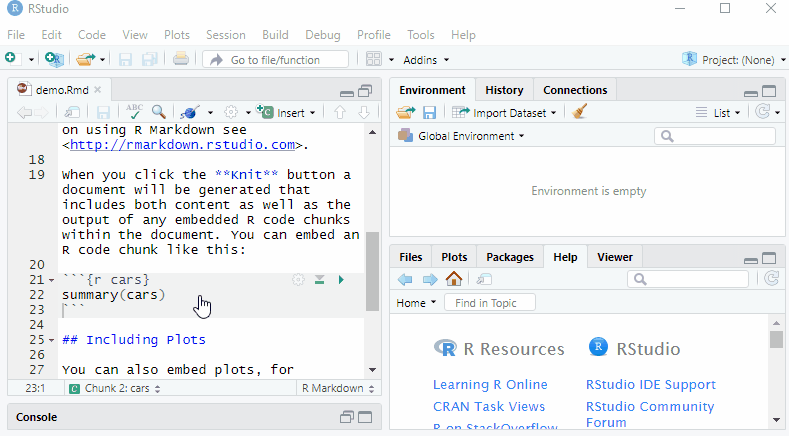

Chunk execution

   or    Ctrl + Enter

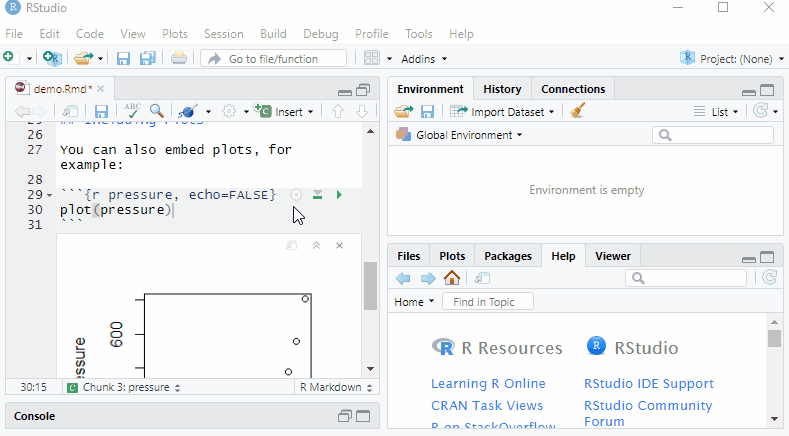

Chunk options

R Markdown Troubleshooting

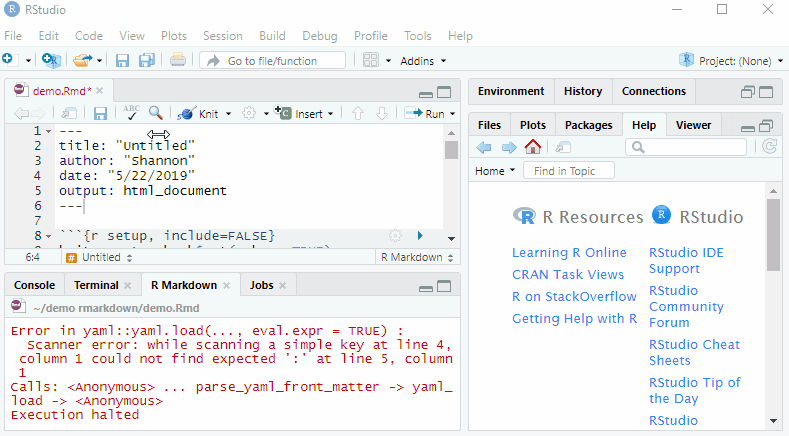

YAML error

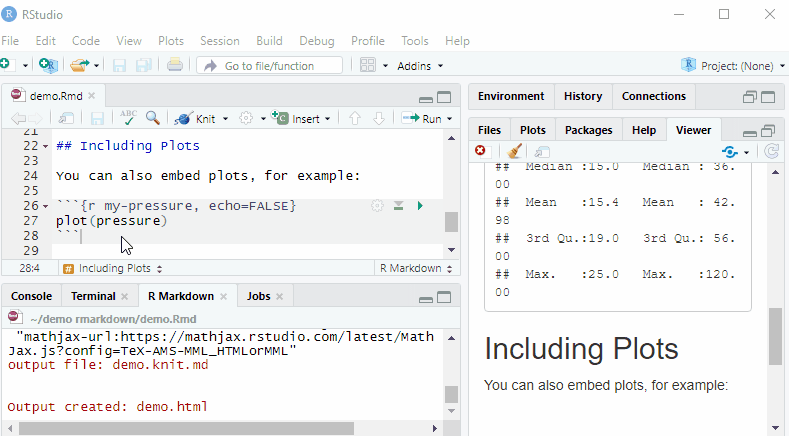

Chunk error

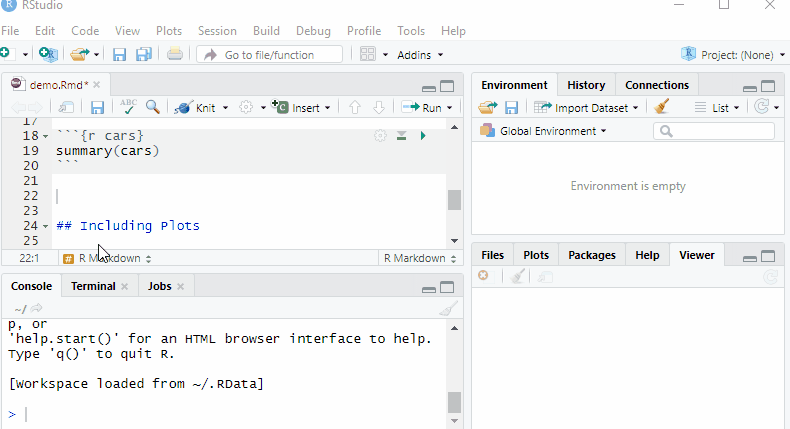

Chunk error for duplicate chunk name

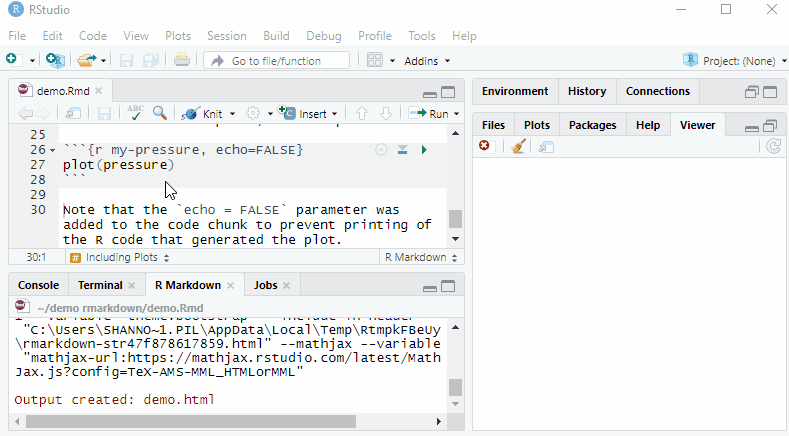

Layout error

Let your markdown breathe! If something doesn’t look right, try adding white space.

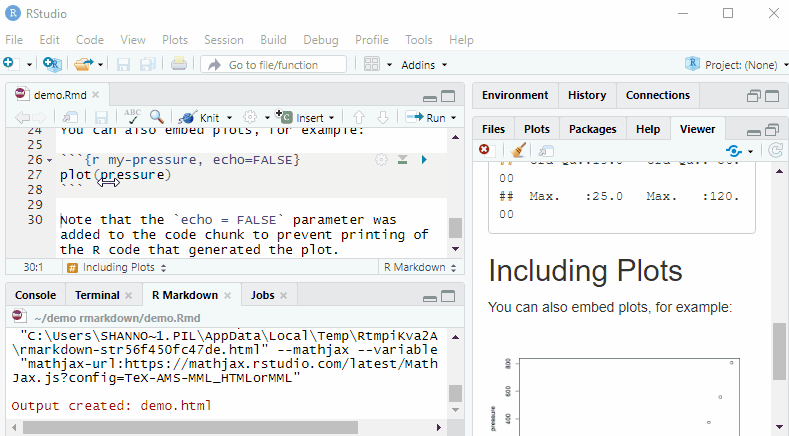

R code error

The end
